Connecting the N8070 Fusee Simulator



Installing the N8070 is very straightforward. Because the module has circuitry on both sides, care must be taken to be sure that the components or wires soldered will not make contact with any metal object which could cause a short circuit.

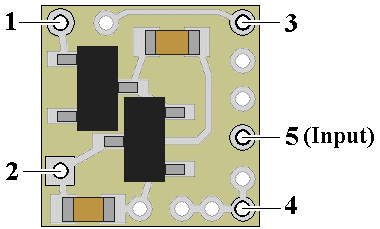

Included with the module are three 6” lengths of #32 insulated wire. If desired, these can be used for power & input control wires. In this case, the red wire can be connected to solder point 1 (the +DC connection), the black wire to solder point 2 (DC-), and the violet wire to point 5. See Fig. 1 below for connection points.

Any well regulated DC power source can be used to power this module providing the voltage is at least 6VDC and doesn't exceed 18VDC. Our N3512 and N3518 Power supplies are ideal for this use. Also, due to the very low power consumption, this device can also be powered by a battery, such as a standard 9-volt.

Important note: A low-wattage iron with a pointed tip should be used for connection of wires. Too much heat or solder can easily damage the wires or module and void the warranty.

                                Figure 1

Also, all connecting wires should be pre-tinned before soldering them to the module. This will make connection quick and easy and ensure excessive heat is not applied to the solder points.



Using Track Power



While it is always preferable to use track power exclusively for things running on the track, there may be situations where it is necessary to tap into track power to drive various stationary devices. All of our Simulators require a clean DC voltage of known polarity for their power source. Track power is typically provided in one of two forms. DC voltage (analog), or DCC.

Analog track power has been around for more than 75 years. Simply put, a DC voltage is applied to the two tracks with one being +DC and the other, -DC. Increase the voltage and the electric motor in the locomotive spins faster making the train go faster. Unfortunately, stopping a train requires the track voltage to go to zero. If you were to tap into track voltage to power this simulator, every time the train stops, the lighthouse would go out. It is best to use a separate DC power source.

DCC track power is such that to devices requiring plain DC voltage, it looks like AC power. That is because voltage levels on each track go both + and – continuously. The DCC decoders in locomotives “descramble” the track signals and provide correct polarity so their motors can function normally. It is this process that will allow multiple locomotives to go in different directions on the same section of track, at the same time (a feature not available with analog track power). Once again, our Simulator needs fixed polarity and it needs to look like DC voltage.

Due to our Simulator's very small size, there is insufficient space to include additional circuitry and components necessary for proper power conditioning when direct track pickup is to be used. There are two solutions to this problem and both are inexpensive:

Discrete components

The Simulator can be powered from the track with the addition of two readily available components: a bridge rectifier (our N301S or N302S will work just fine), and a filter capacitor (10μf or larger and minimum 16-volt) will be required. Figure 2 below is schematic diagram of the connections required.

                                             Figure 2

This is the least expensive solution, but is has a minor drawback. The bridge rectifier (and capacitor, if needed) are not mounted on a circuit board so direct solder connection is required and you will need to ensure the pins on the rectifier and leads on the capacitor (depending on the type of capacitor) are organized so that they won't short out against anything.

N8101 DC Power Source

A more elegant, but very slightly more costly ($3.95) solution would be to use our N8101 DC Power Source. It has all of the components needed, includes a circuit board with solder points, is extremely tiny (1/2 the size of our Simulator), has the lowest possible voltage loss (important for analog operators). Click here for more information on the N8101. Figure 3 below is schematic diagram of the connections required.

                                               Figure 3



Connecting LEDs

When connecting LEDs, proper polarity must be observed. LEDs are “polarity sensitive” and will not function if connected backwards. The N8070 is configured to connect either two series-wired 20 ma red LEDs, or a single 20 ma red LED with a device voltage of 1.75-2.0 VDC between solder points 3 & 4. (this covers all of Ngineering’s red LEDs, as well as most red LEDs available). These LEDs will use the N8070s on-board current protection resistor.

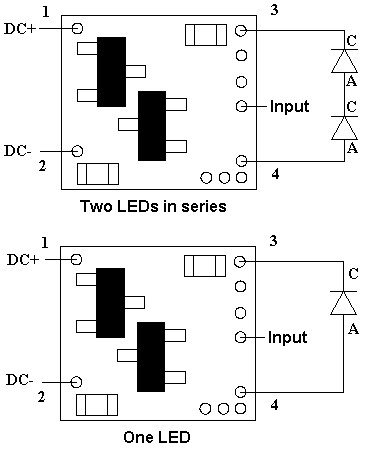

Use wire appropriate for the size of the LED and its placement in the model. For two LEDs, connect the first LED anode (the + connection) to solder point 4. Connect the cathode (- connection) of this LED to the anode of the second LED and connect the cathode (- connection) of the second LED to solder point 3. For a single LED, connect the anode to solder point 4. Connect the LED cathode to point 3.

Input control

At power-on several short bursts of light occur followed by a brief pause to give the appearance of igniting the flares. This ignition sequence only occurs at startup and can be disabled entirely by connecting the input control(solder point 5) to point 2 (–DC).

Figure 4 (below) is a schematic diagram of the connections required.



                                    Figure 4



For added realism, activation of this module could be controlled by a train detector at track and a power switching circuit to start the effect as a locomotive approaches crossing.

Once again, be sure to use a low-wattage soldering iron when connecting wires to the module.



This completes hookup of our N8070 Fusee module. We hope the added realism it provides enhances your enjoyment of the hobby.
