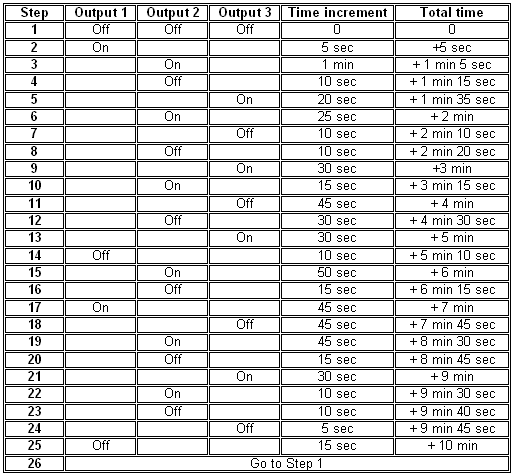

N8048 Structure Lighting Simulator output sequence timing

Note: Based on customer feedback, effective with Rev. A, (April, 2009) we have revised the timing sequence for the N8048 to eliminate the 15 minute off period after step 26. The sequence total time is now 10 minutes and upon completion, immediately restarts at step 1. Any customer with an earlier version of this N8048 Simulator that wishes the new timing sequence can return the product for a free reprogramming.

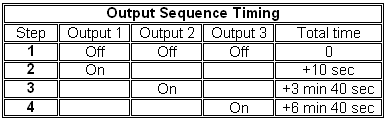

N8048C Structure Lighting Controller output sequence timing
